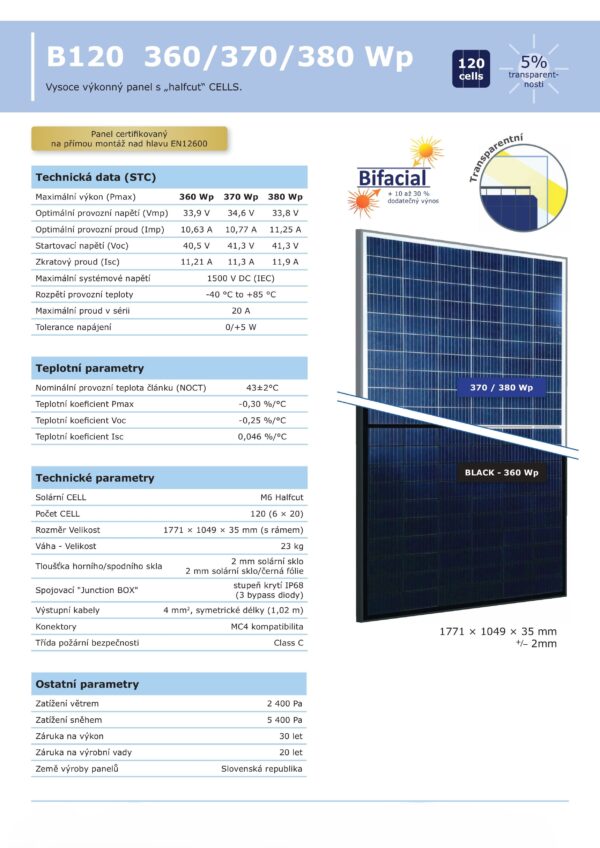

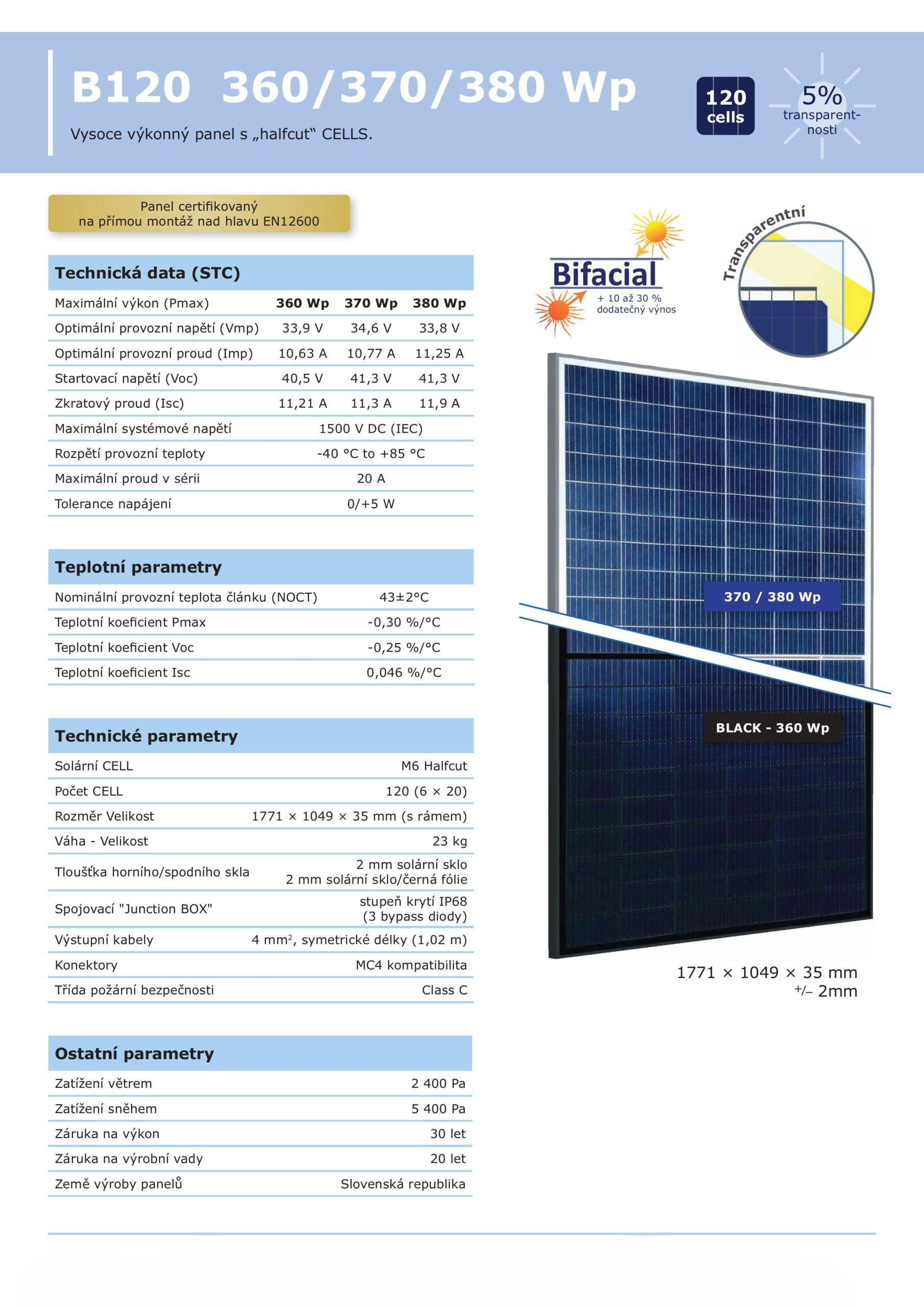

FVE PANEL AG-B120-360/370/380Wp

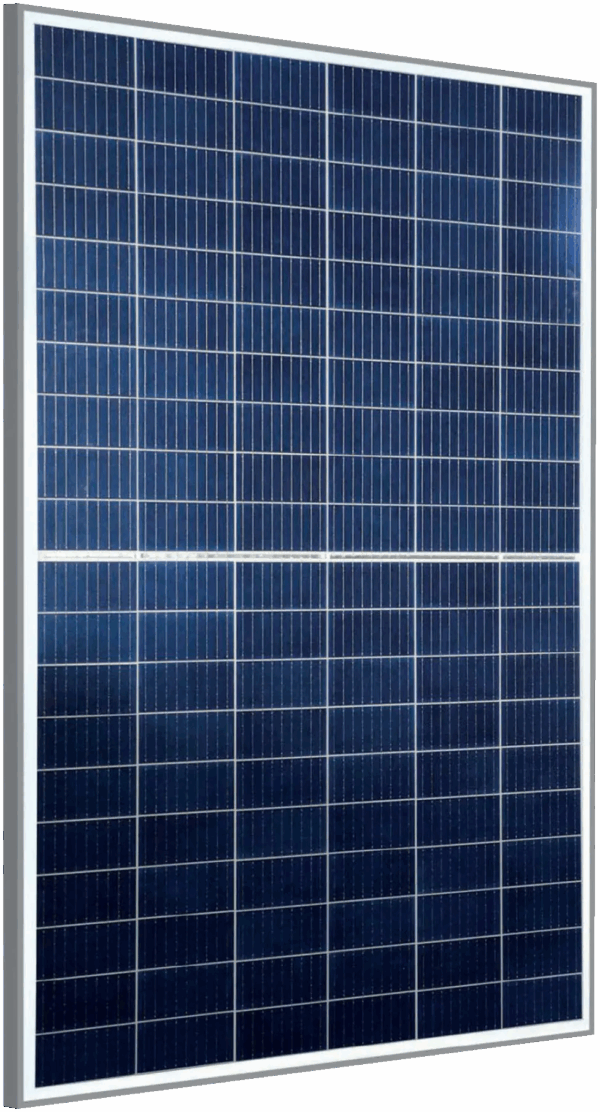

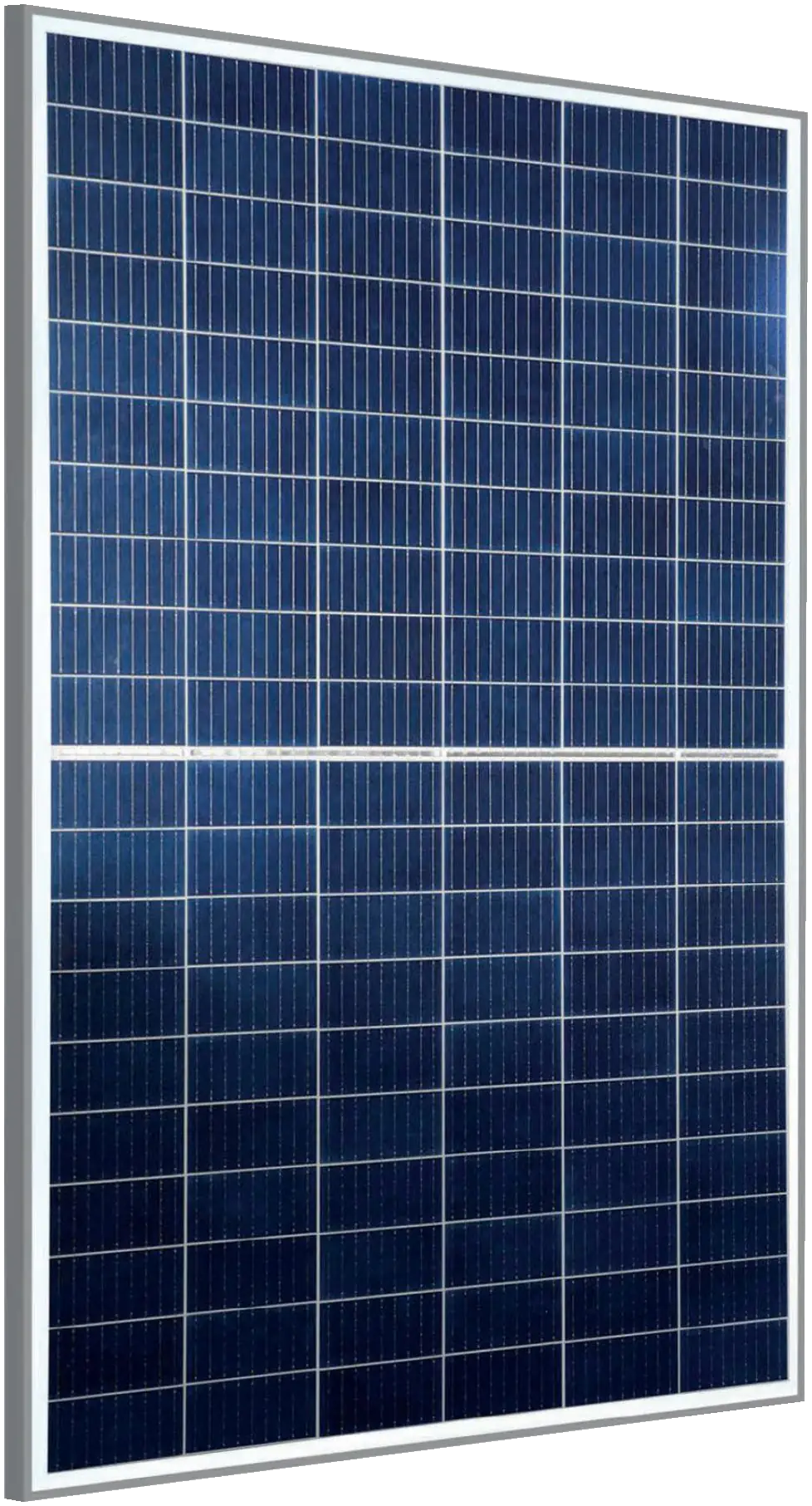

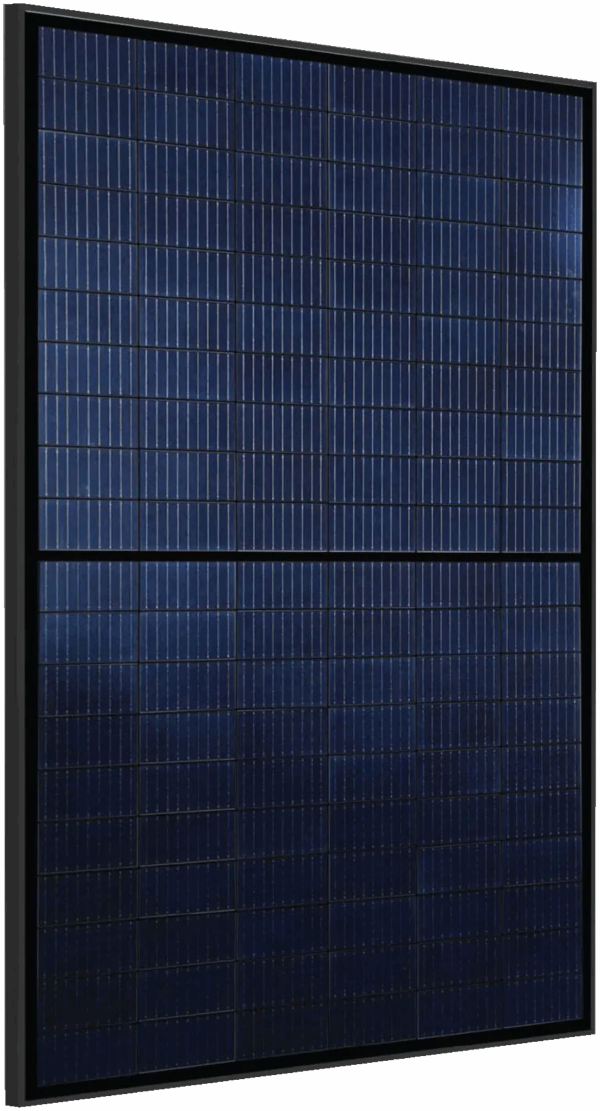

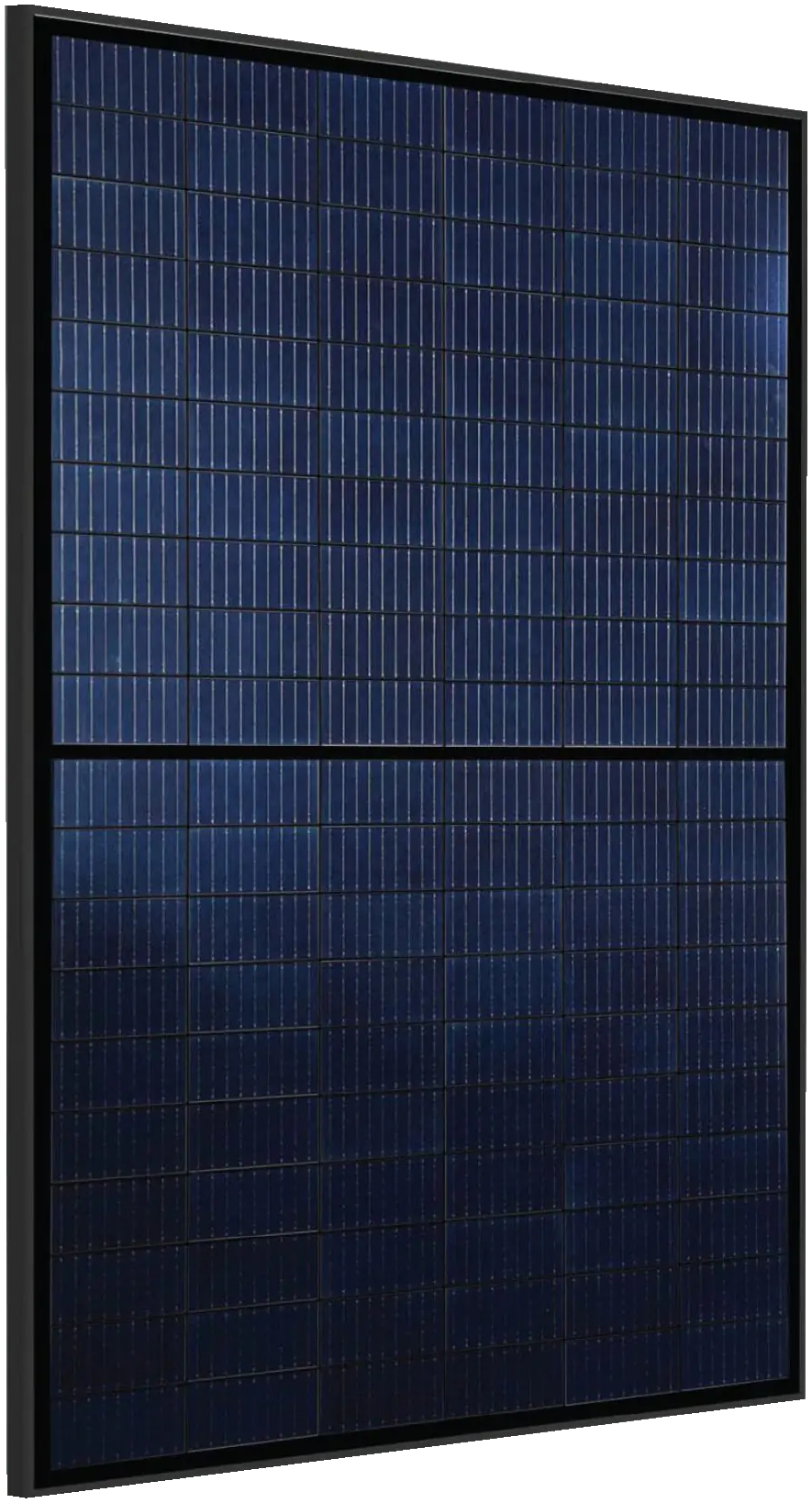

Vysoko výkonný fotovoltaický panel s HALFCUT CELLS, vo výkonoch 360 Wp, 370 Wp, 380 Wp a dvoch farebných prevedeniach.

Maximálny výkon (Pmax)	360 Wp 370 Wp 380 Wp
Optimálne prevádzkové napätie (Vmp)	33,90 V 34,60 V 33,80 V
Optimálny prevádzkový prúd (Imp)	10,63 A 10,77 A 11,25 A
Napätie naprázdno (Voc)	40,50 V 41,30 V 41,3 V
Skratujúci prúd (Isc)	11,21 A 11,30 A 11,90 A
Maximálne systémové napätie	1500 V DC (IEC)
Prevádzková teplota modulu	-40°C to +85°C
Maximálne povolené istenie v sérii	20 A
Výkonová tolerancia	0/+5 W

Nominálna prevádzková teplota bunky (NOCT)	43 ± 2 °C
Teplotný koeficient výkonu (Pmax)	-0.30 % / °C
Teplotný koeficient napätia (Voc)	-0.25 % / °C
Teplotný koeficient prúdu (Isc)	+0.046 % / °C

Typ solárnej bunky	M6 Halfcut
Počet buniek	120 (6 x 20)
Rozmery	1771 × 1049 × 35 mm (s rámom)
Hmotnosť	23 kg
Predná/zadná strana	2 mm solárne sklo 2 mm solárne sklo/čierna fólia
Junction box	stupeň krytia IP68 (tri bypass diódy)
Výstupný kábel	4.0 mm², symetrické dĺžky (1,02 m)
Konektor	MC4 kompatibilný
Požiarna bezpečnosť	Class C
